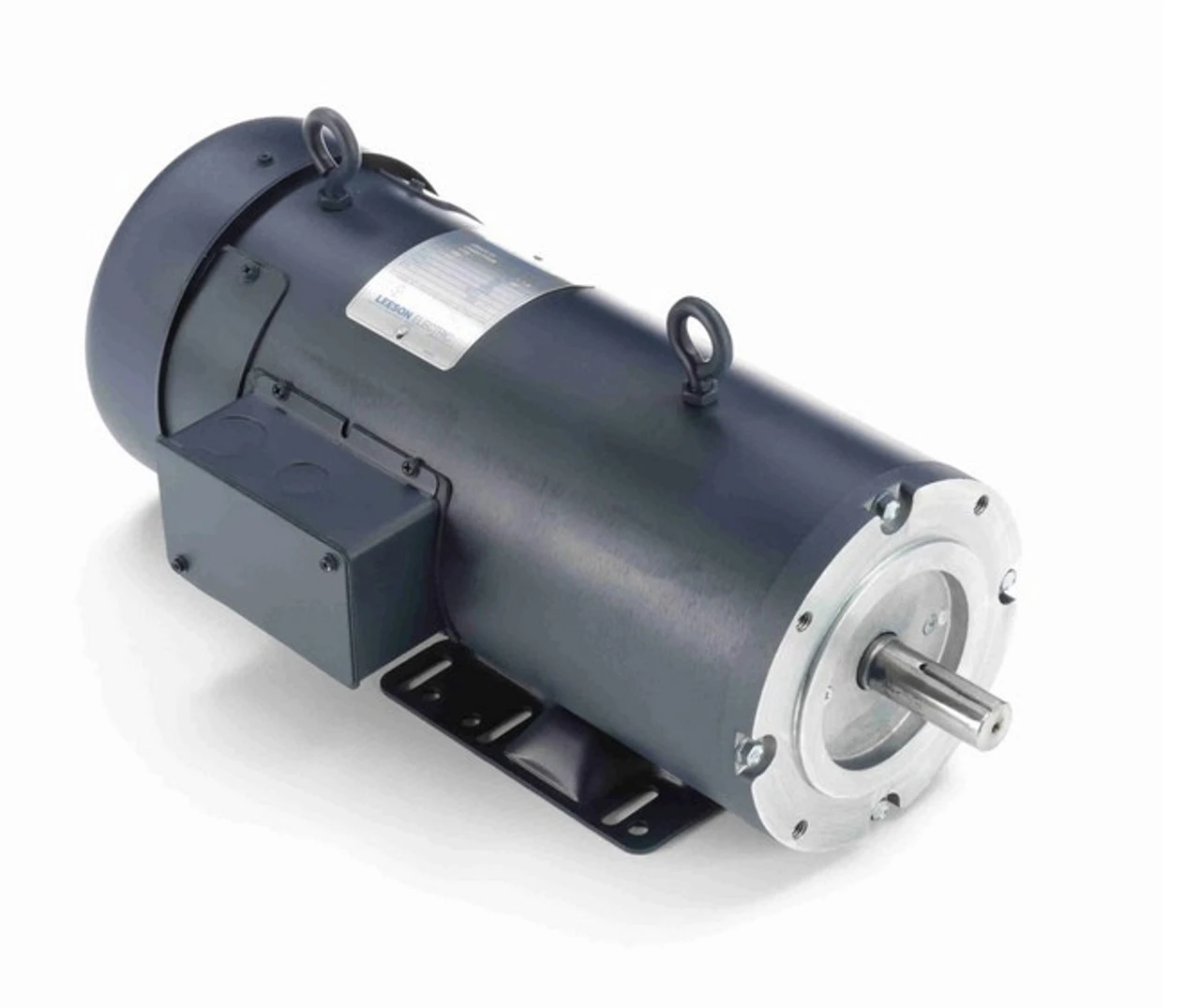

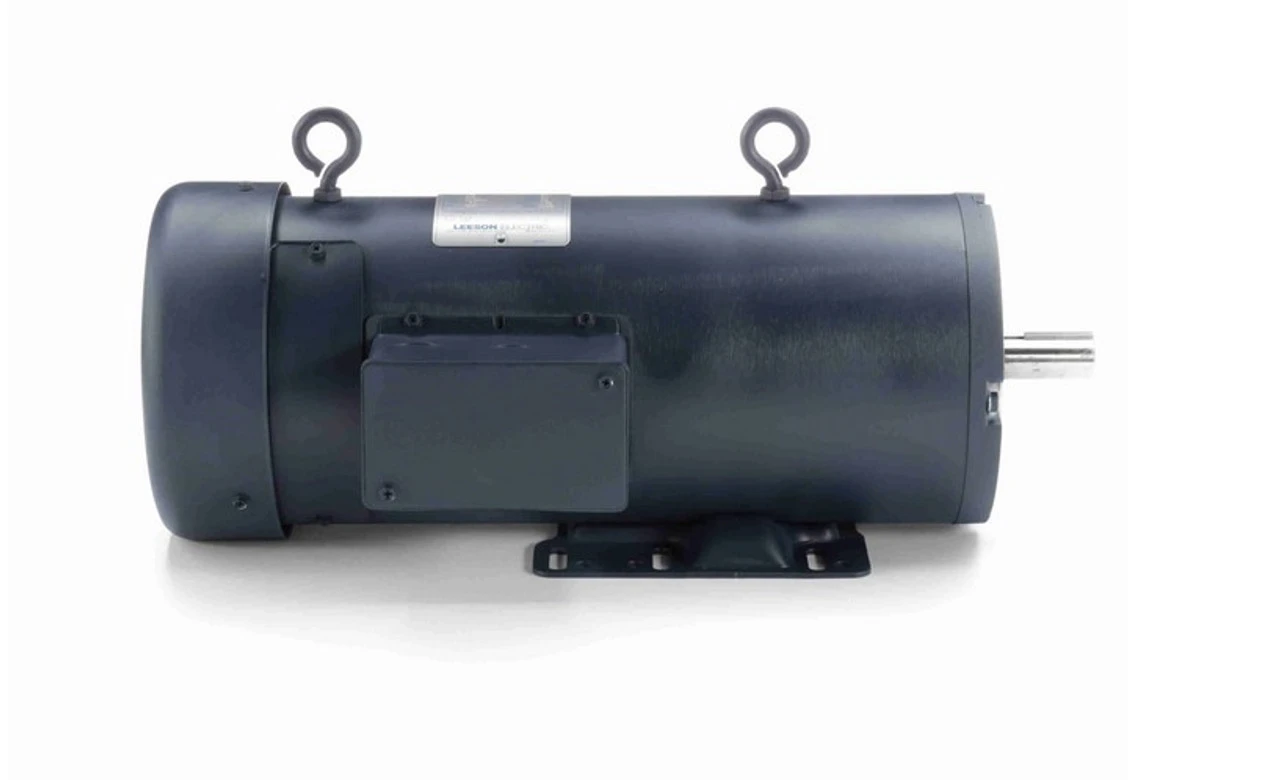

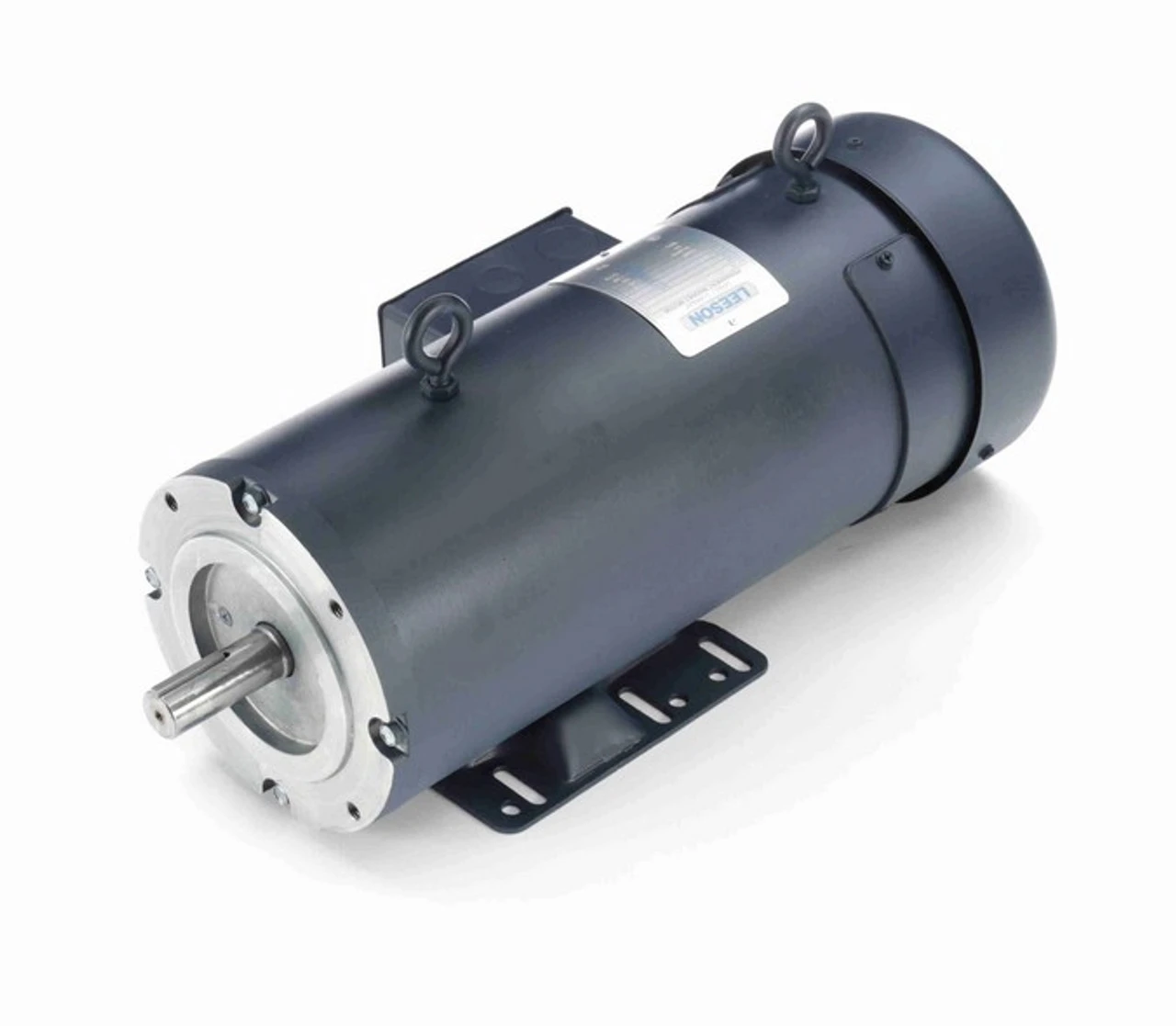

128000.00 Leeson 1 1/2 Hp 1800 RPM 180VDC 145TC Frame (Rigid Base) TEFC DC Controlled Motor

128000.00 Leeson 1 1/2 Hp 1800 RPM 180VDC 145TC Frame (Rigid Base) TEFC DC Controlled Motor - Image 2

128000.00 Leeson 1 1/2 Hp 1800 RPM 180VDC 145TC Frame (Rigid Base) TEFC DC Controlled Motor - Image 3

128000.00 Leeson 1 1/2 Hp 1800 RPM 180VDC 145TC Frame (Rigid Base) TEFC DC Controlled Motor

Original price was: $307.00.Current price is: $98.99.

SKU: ZWXLY 1698665289 Categories: DC Motors, Electric Motors Tag: Leeson

Discover a world of quality products.
Secure Shopping Starts with Safe Payments
Uncompromising quality, every time.
Free 1 year warranty period

Description
Reviews (0)

1 1/2 hp 1800 RPM, 7.5 amps 180 Volt DC Controlled Motor
NEMA 145TC Frame, Shaft 7/8″ Diameter x 2 1/8
Service Factor: 1.0 Overload Protection = None
Rigid Base, Reversible, Ball Bearings – Class F Insulation
1 Year Manufacture Warranty

C-Face DC motor designed for use with SCR (Silicon Controlled Rectifier) and PWM (Pulse Width Modulation) motor controllers. Wiring diagram on motor name plate. TEFC = Totally-Enclosed Fan-Cooled.

Replaces Marathon Z615, 145TEFR5326
