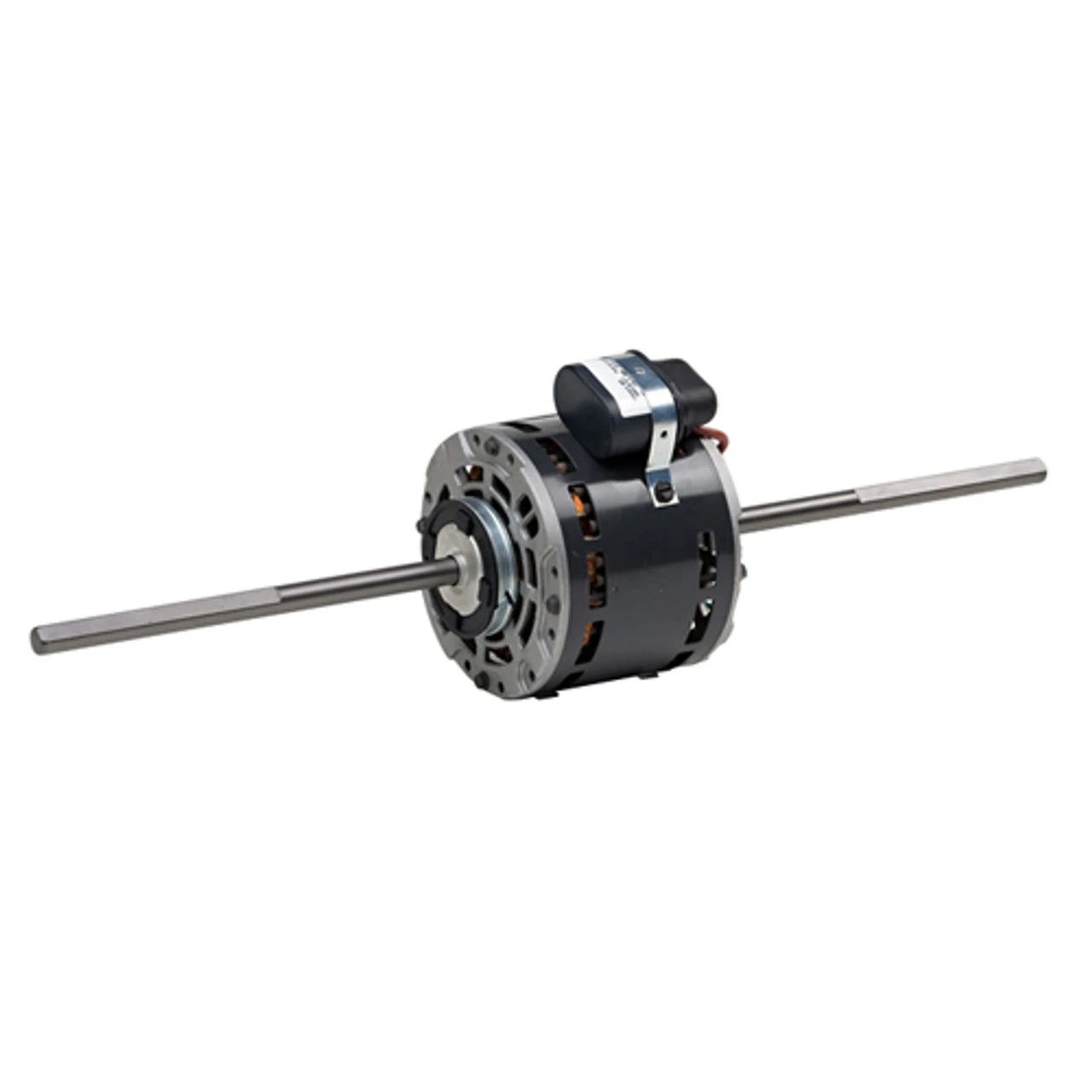

1247 Nidec 1/3 Hp 1075 RPM 230V 5.6″ Dia. (Base) 3-Speed OAO Fan Motor
Original price was: $246.40.$97.99Current price is: $97.99.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period
- 1/3 hp 1075 RPM, 3 speed 1.2 amps 230V Volts 60 Hz PSC Motor
- 5.6″ Dia. Frame, Rolled Steel, Flat Shaft 9″ x 1/2″ x 9″
- Service Factor = 1, Overload Protection: Auto
- Resilient Base Mount, Sleeve Bearings, Class B Insulation, CCW Lead End
- 1 Year Manufacture Warranty

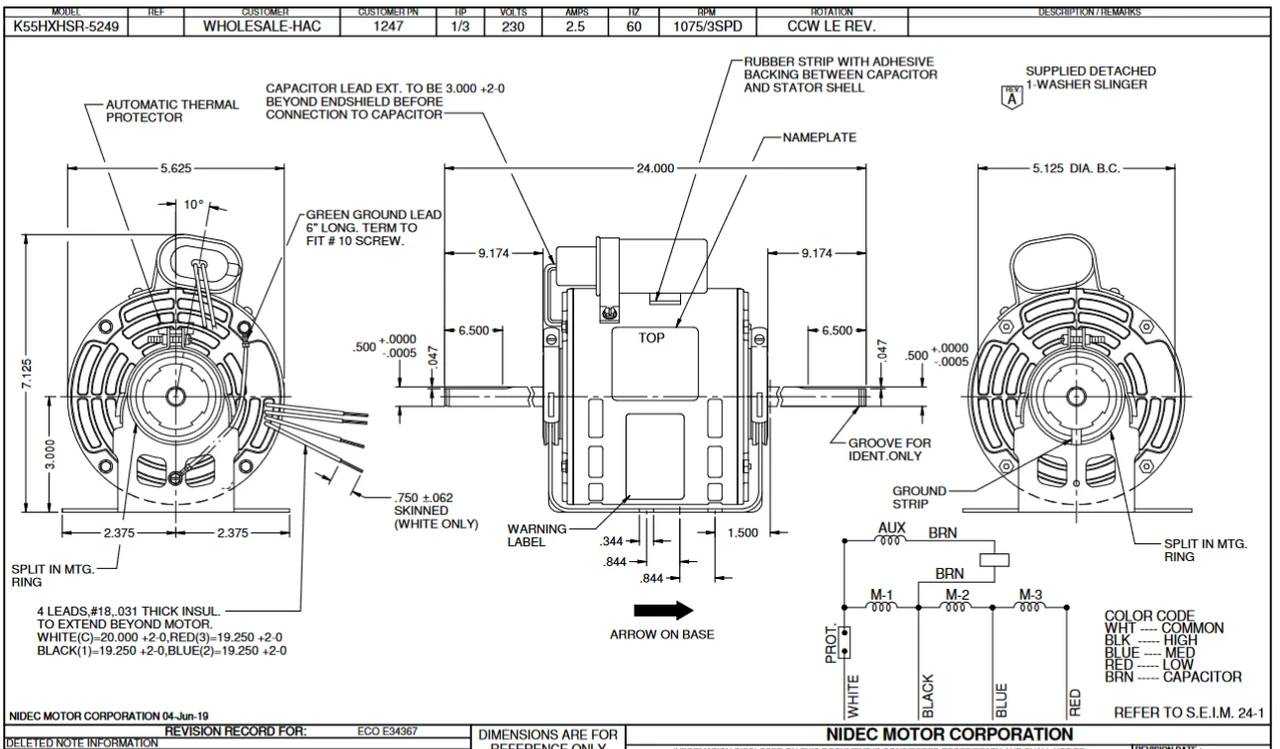

Direct Drive Fan Motor for central HVAC systems. Wiring diagram on motor name plate. OAO = Open Air-Over, KD55HSR5249R11B
