121910.00 Leeson Extreme Duck 2 Hp 3600 RPM 230/460V 3-Phase 145TC Frame TEFC (no Base) Motor

• 2 hp 3600 RPM, 4.8/2.4 amps 230/460 Volts 60 Hz. Three Phase

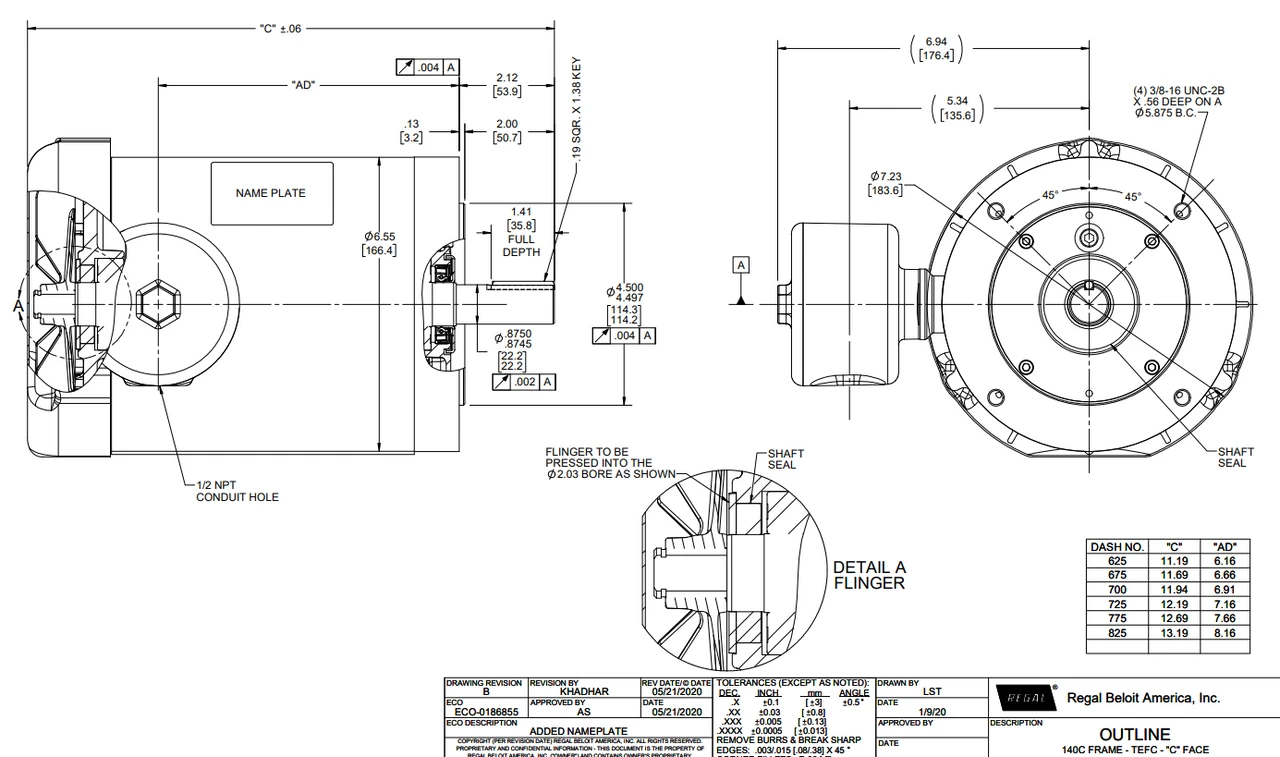

• NEMA 145TC frame, C-face, Stainless Steel Keyed Shaft 7/8″ Diameter x 2 1/8″
• Service Factor: 1.15, Overload protection = None
• Rigid Base, Reversible, Ball Bearings, Class F Insulation
• 1 Year Manufacture Warranty,

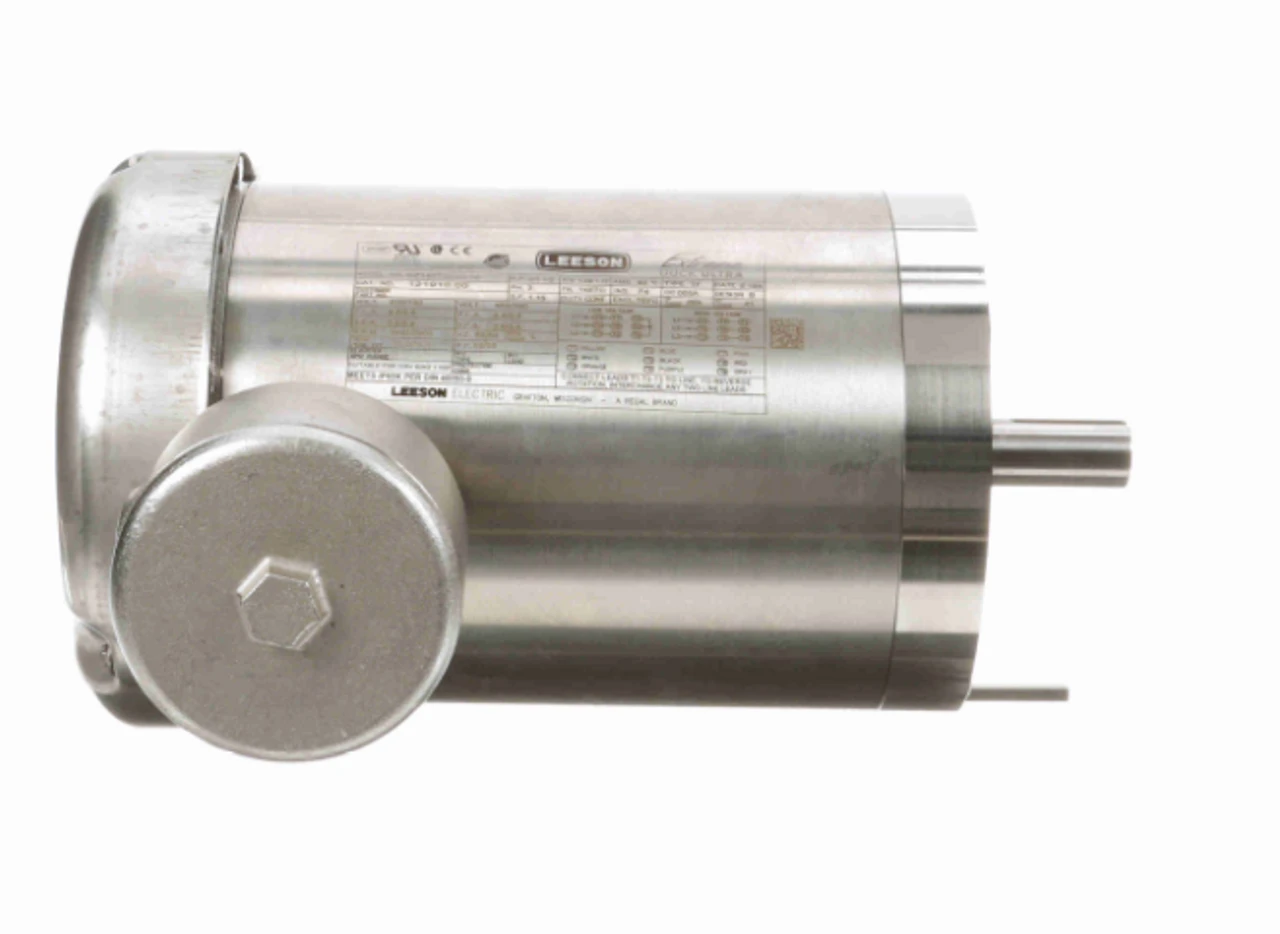

Stainless Steel wash-down motors are use in applications involving challenging caustic environments. This is a three phase electric motor with a C-face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8″ on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 121910.00
