Sale!

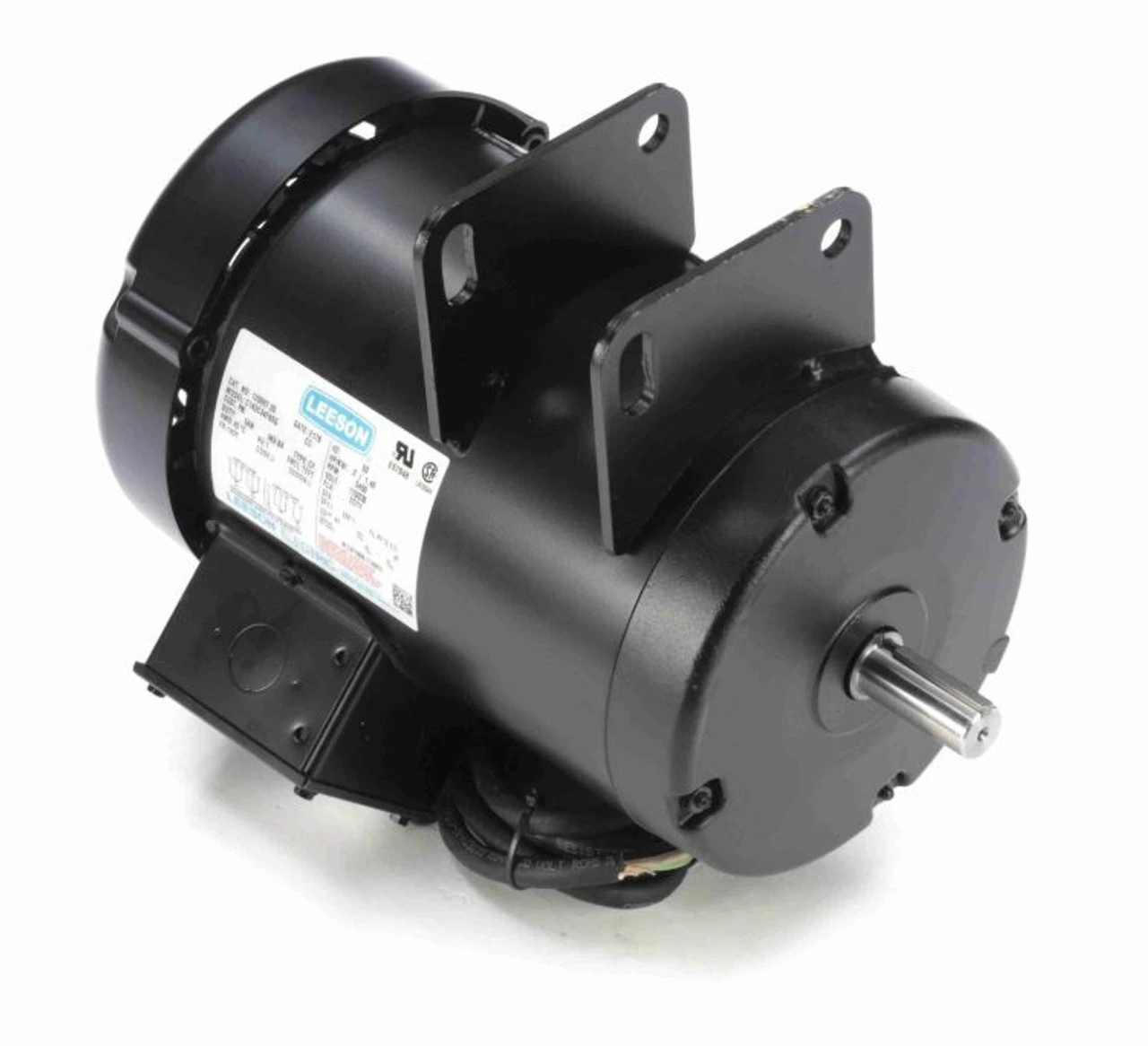

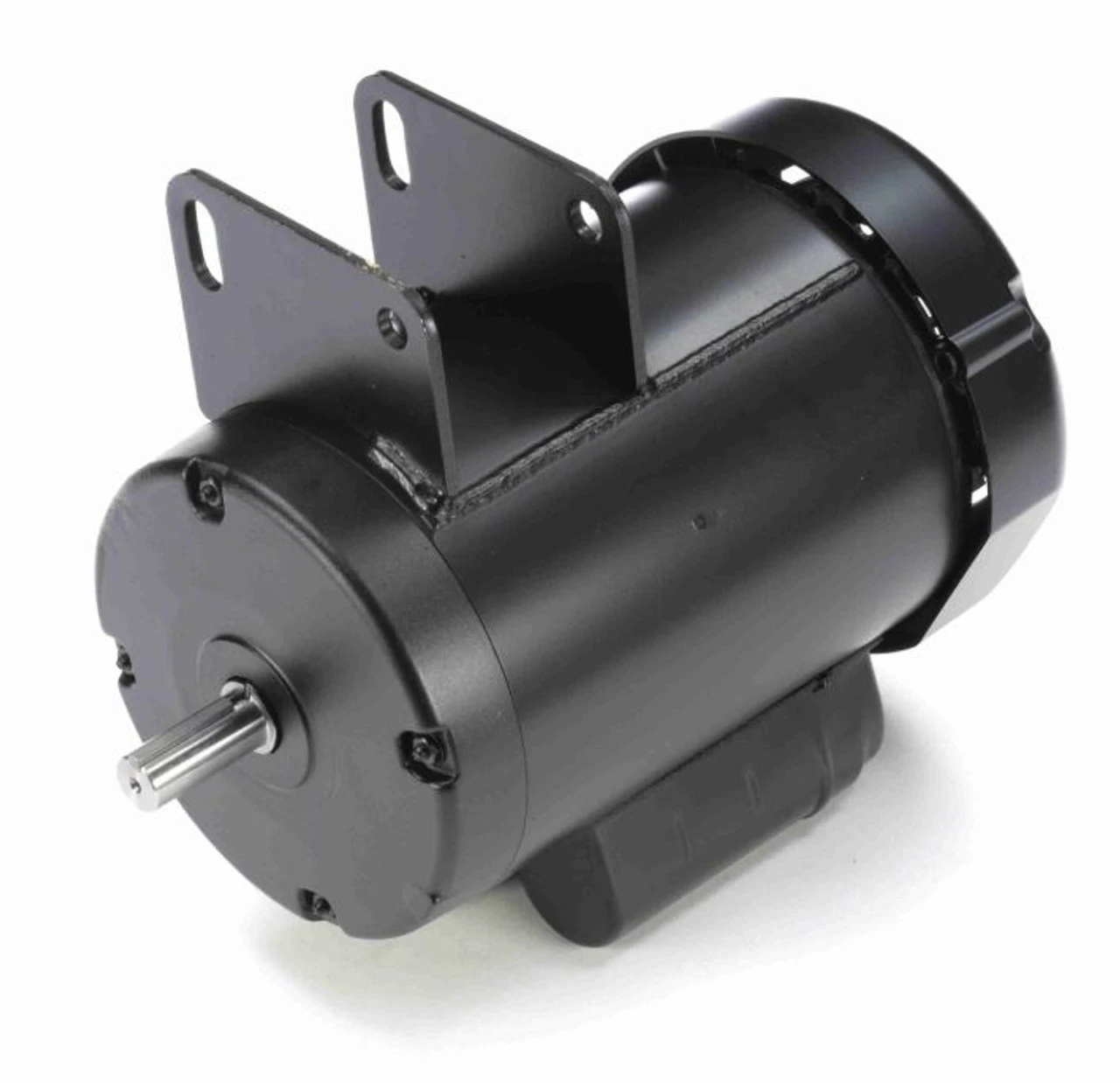

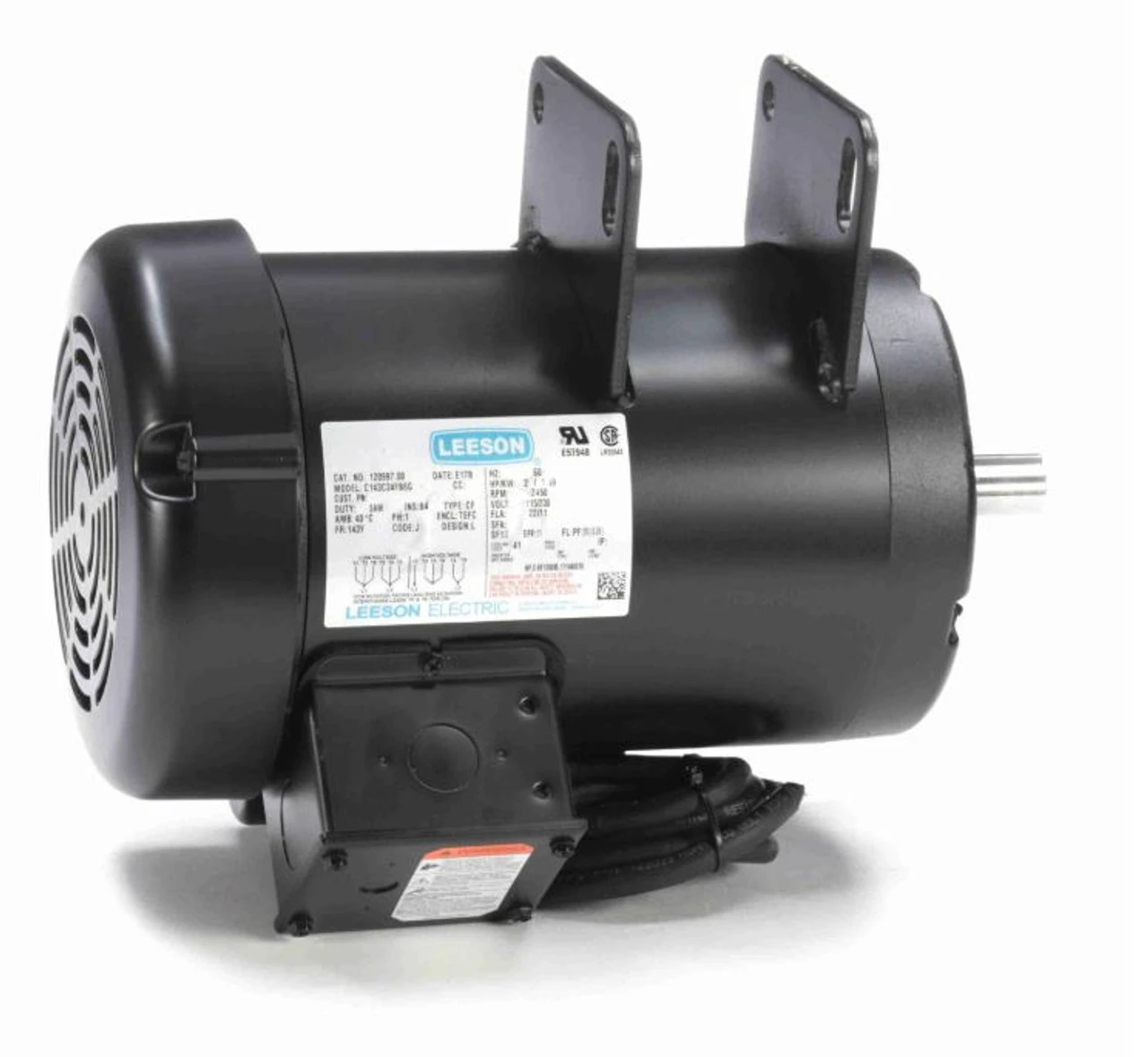

120997.00 Leeson | 2 Hp 3450 RPM Delta Unisaw Electric Motor 115/230 Volts

120997.00 Leeson | 2 Hp 3450 RPM Delta Unisaw Electric Motor 115/230 Volts - Image 2

120997.00 Leeson | 2 Hp 3450 RPM Delta Unisaw Electric Motor 115/230 Volts - Image 3

120997.00 Leeson | 2 Hp 3450 RPM Delta Unisaw Electric Motor 115/230 Volts - Image 4

120997.00 Leeson | 2 Hp 3450 RPM Delta Unisaw Electric Motor 115/230 Volts

Original price was: $366.00.Current price is: $99.99.

SKU: ZWXLY 1698666565 Category: Electric Motors Tag: Leeson

Discover a world of quality products.
Secure Shopping Starts with Safe Payments
Uncompromising quality, every time.
Free 1 year warranty period

Description
Reviews (0)

DELTA UNISAW REPLACEMENT MOTOR FOR 83-621 (2HP)

2 hp 3450 RPM, 22.0/11.0 amps, 115/230V, 60hz.
Shaft Size: 3/4″ Diameter x 1-3/4″ Length
Supplied with 54″ Electric cord connected for 230 volts
Totally Enclosed Fan Cooled
Electrically Reversible
143Y Frame Specialty Mounting Bracket
Overload Protection = None
Ball Bearings, Service Factor 1.0, Class B Insulation
Overall Motor Length = 12.69 inches
1 Year Manufacture Warranty

Special Mounting:

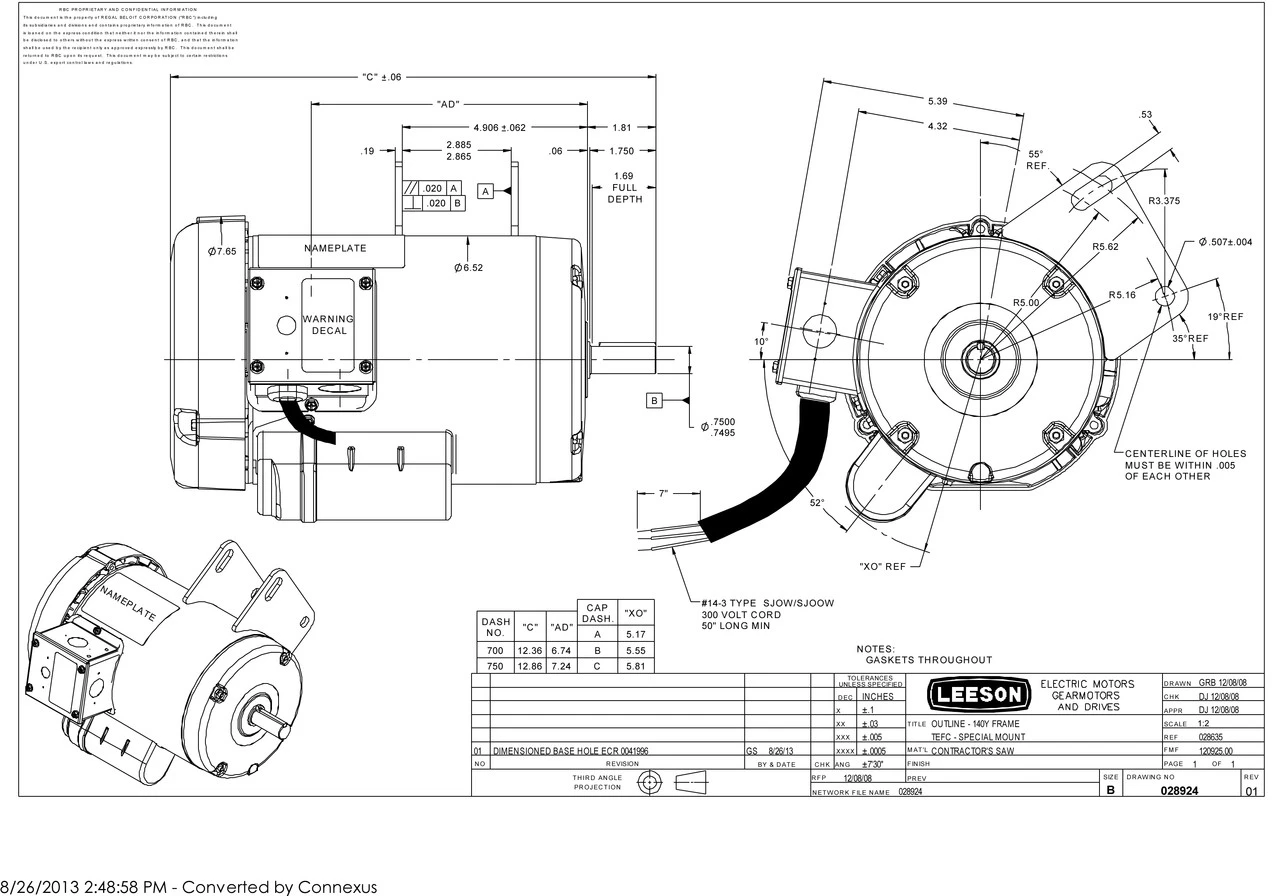

Motor pivots on rod for belt tensioning. We are unsure if this is for a right or left tilt saw, please check the dimensional diagram to make sure the bracket is on the correct side for your saw.

Totally enclosed fan cooled motor produces extra high breakdown torques for maximum cutting power.
Wiring diagram on motor nameplate. Please double check motor connection before installation. Capacitor start/capacitor run for reduced amperage.

Leeson Model: C143C34FB6G
Leeson Catalog No. 120997.00
Dayton 1XEL9
