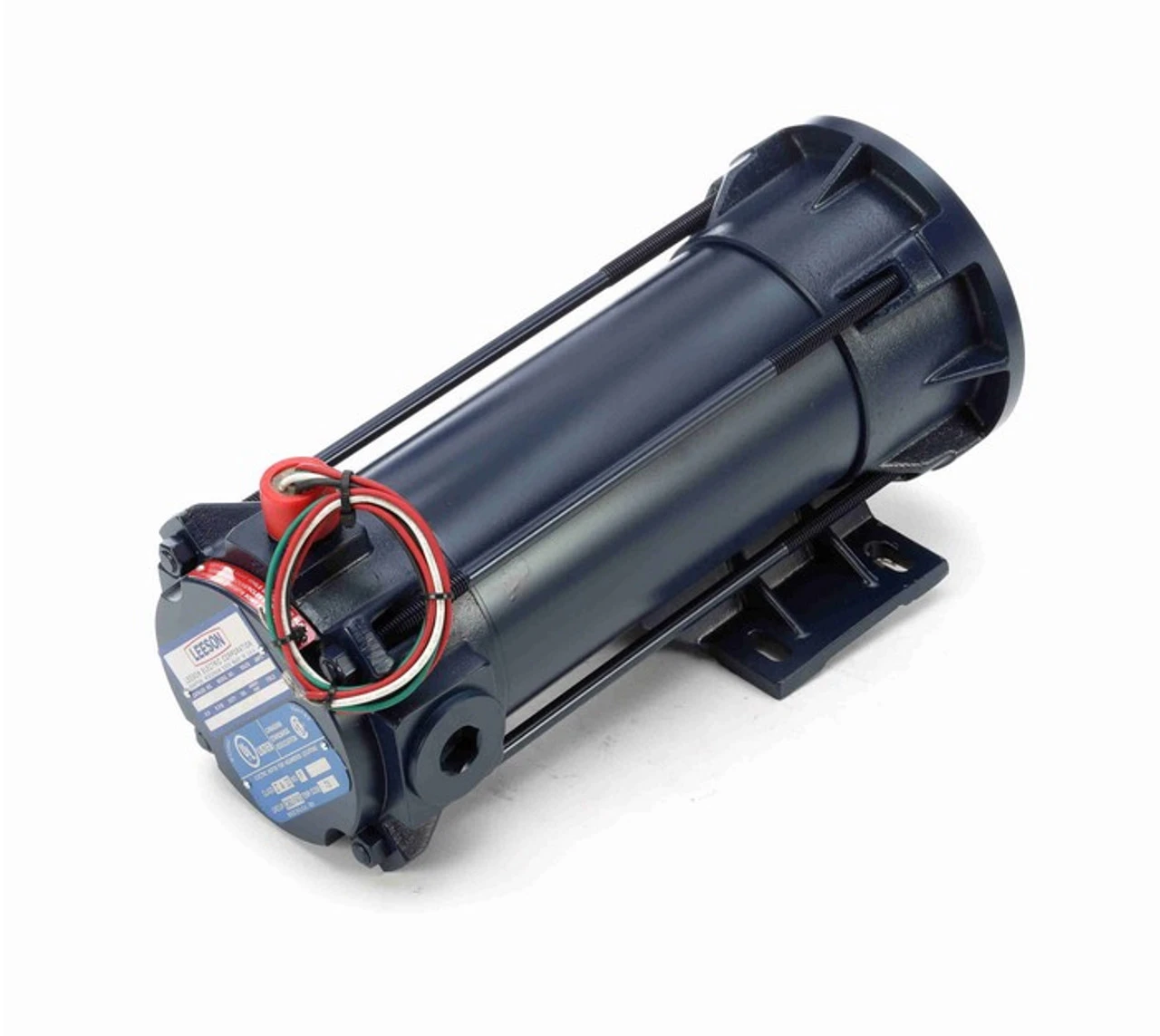

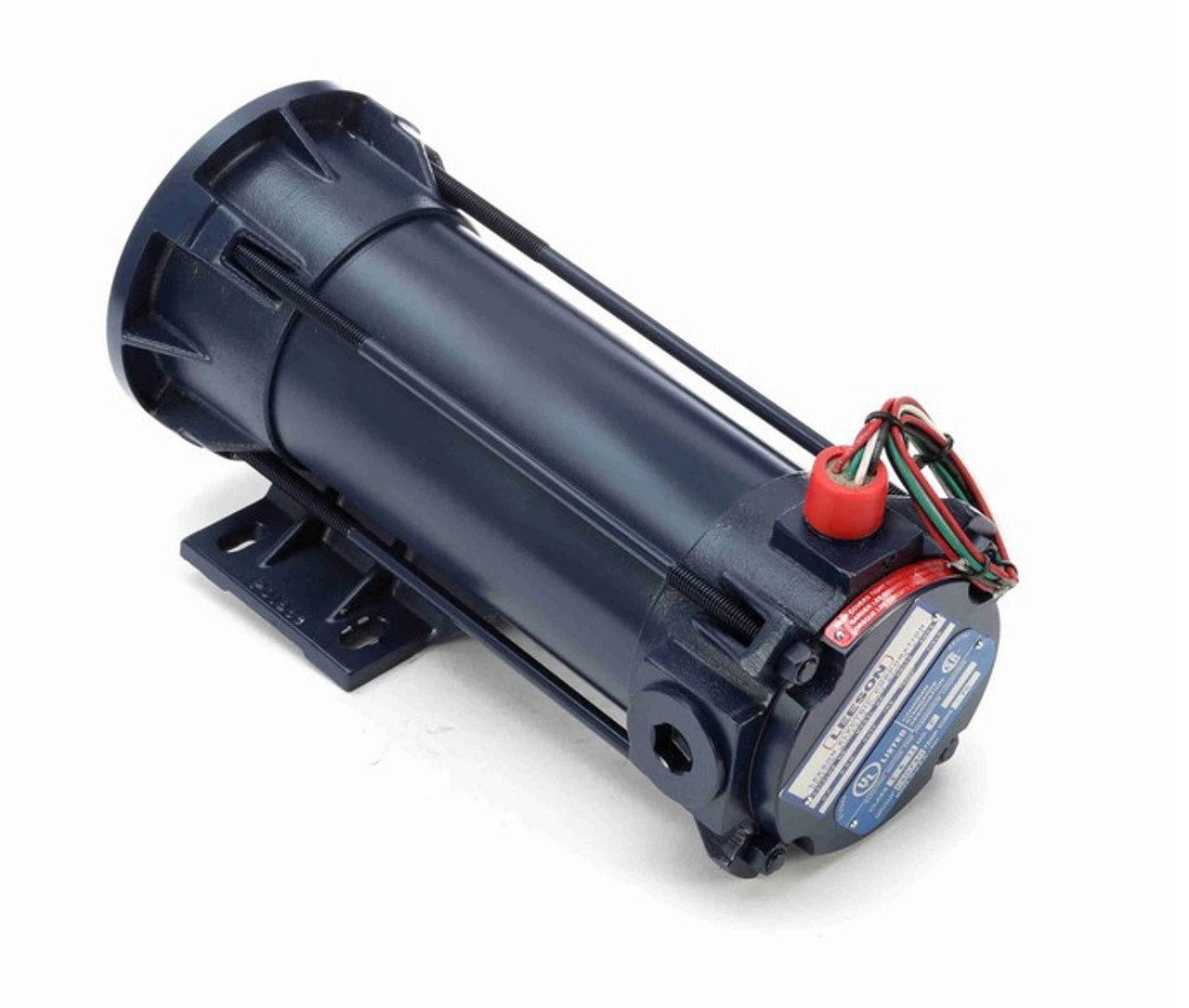

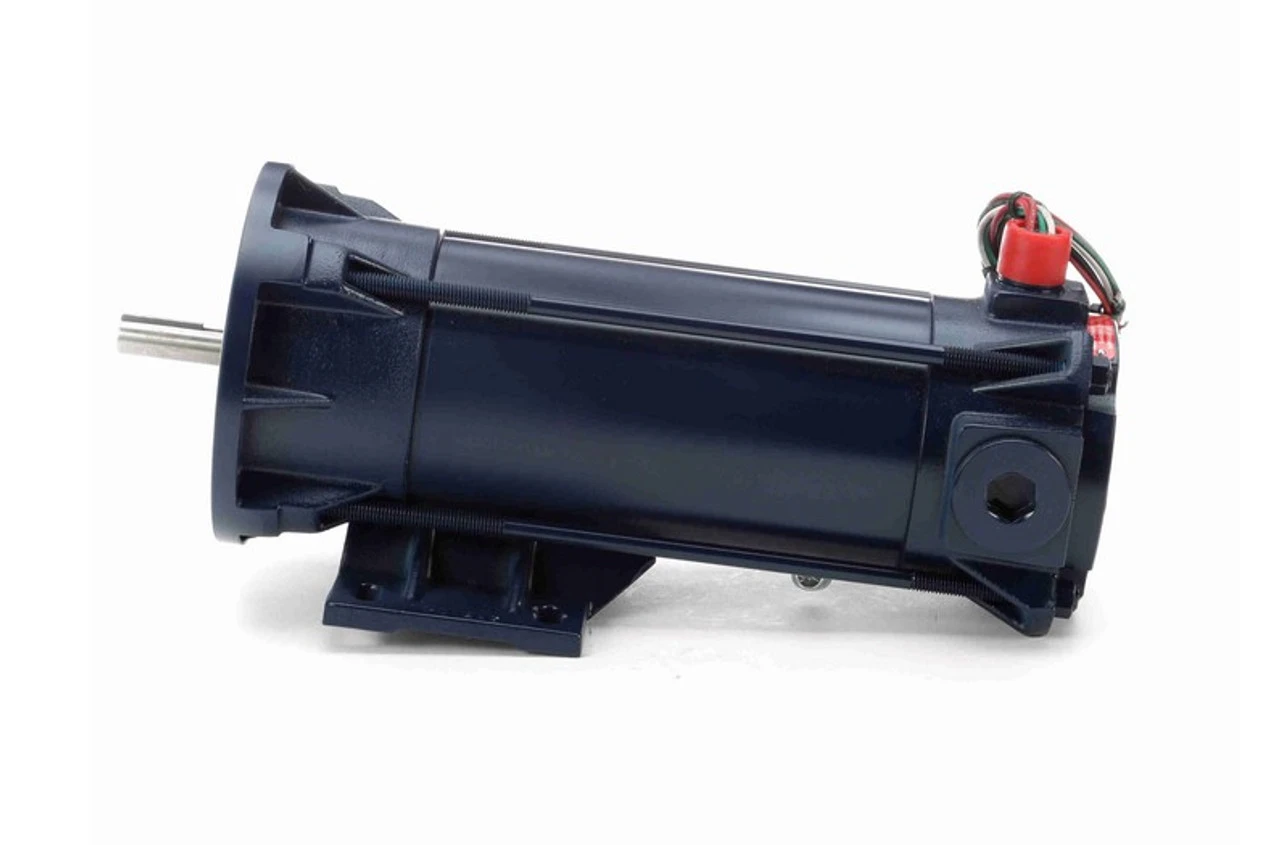

118018.00 Leeson 3/4 Hp 1800 RPM 90VDC 56C Frame (With Base) TENV DC Controllable Explosion Proof Motor
Original price was: $386.00.$97.99Current price is: $97.99.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period
- 3/4 hp 1800 RPM, 7.1 amps 90 Volt DC Controllable Motor
- NEMA 56C Frame, Shaft 5/8″ Diameter x 1 7/8
- Service Factor: 1.0 Overload Protection = Auto
- Rigid Base, Reversible, Ball Bearings, Class H Insulation
- 1 Year Manufacture Warranty
Explosion Proof C-Face DC motor designed for use with SCR (Silicon Controlled Rectifier) motor controllers. Explosion Proof Class 1 Groups C and D, Class II Groups F and G. Wiring diagram on motor name plate. TENV = Totally-Enclosed Non-Ventilated. 118018.00
