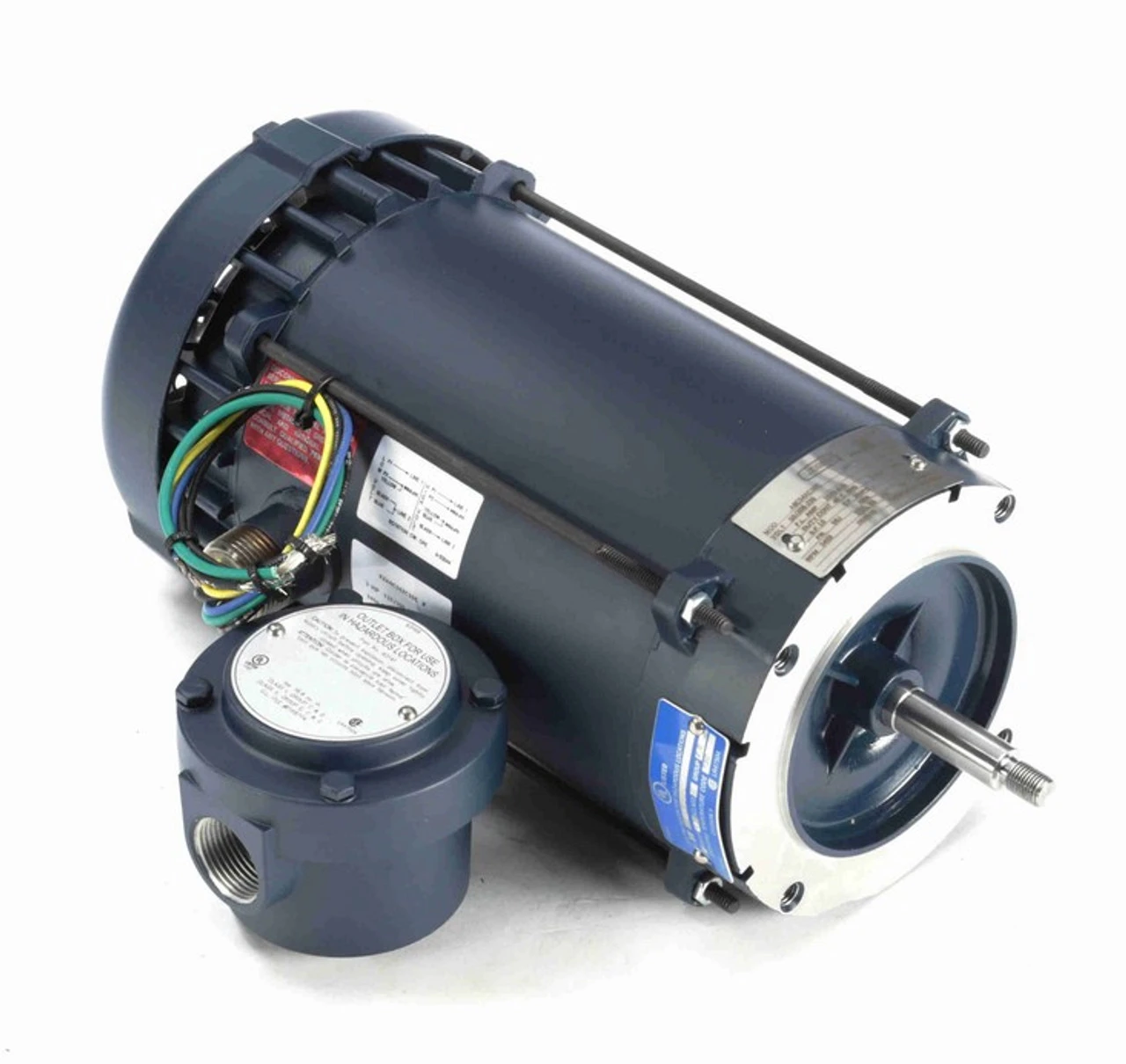

116186.00 Leeson 3/4 Hp 3600 RPM 115/208-230V 56J Frame Explosion-Proof C-Face (no Base) 1-Phase Motor
Original price was: $342.00.$98.99Current price is: $98.99.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period
- 3/4 hp 3600 RPM, 10.6/5.3-5.3 amps 115/208-230 Volts 60 Hz. Capacitor Start Motor
- NEMA 56J Frame Threaded Shaft 5/8″ Diameter x 1 7/8″
- Service Factor: 1.0, Overload Protection = Auto
- No Base, Reversible, Ball Bearings – Class B Insulation
- 1 Year Manufacture Warranty
Explosion-Proof motor for use in hazardous environments with a C-face mount. EXP PROOF CL I GR C&D CL II GR F&G T3C. Bolt holes are 3 3/4″ on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled.111097.00
