Sale!

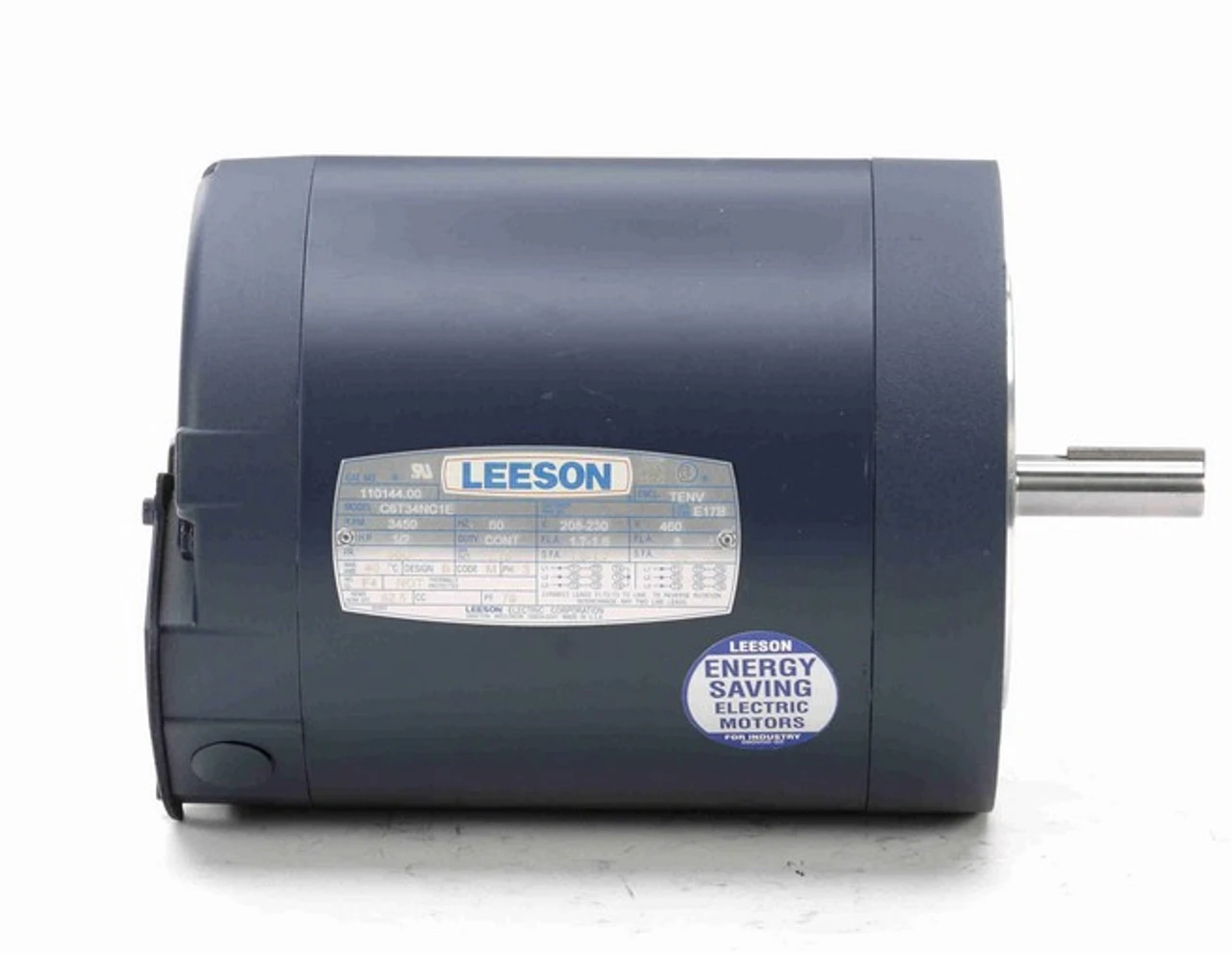

110144.00 Leeson 1/2 Hp 3600 RPM 208-230/460V 56C Frame TENV C-Face (No Base) 3-Phase Motor

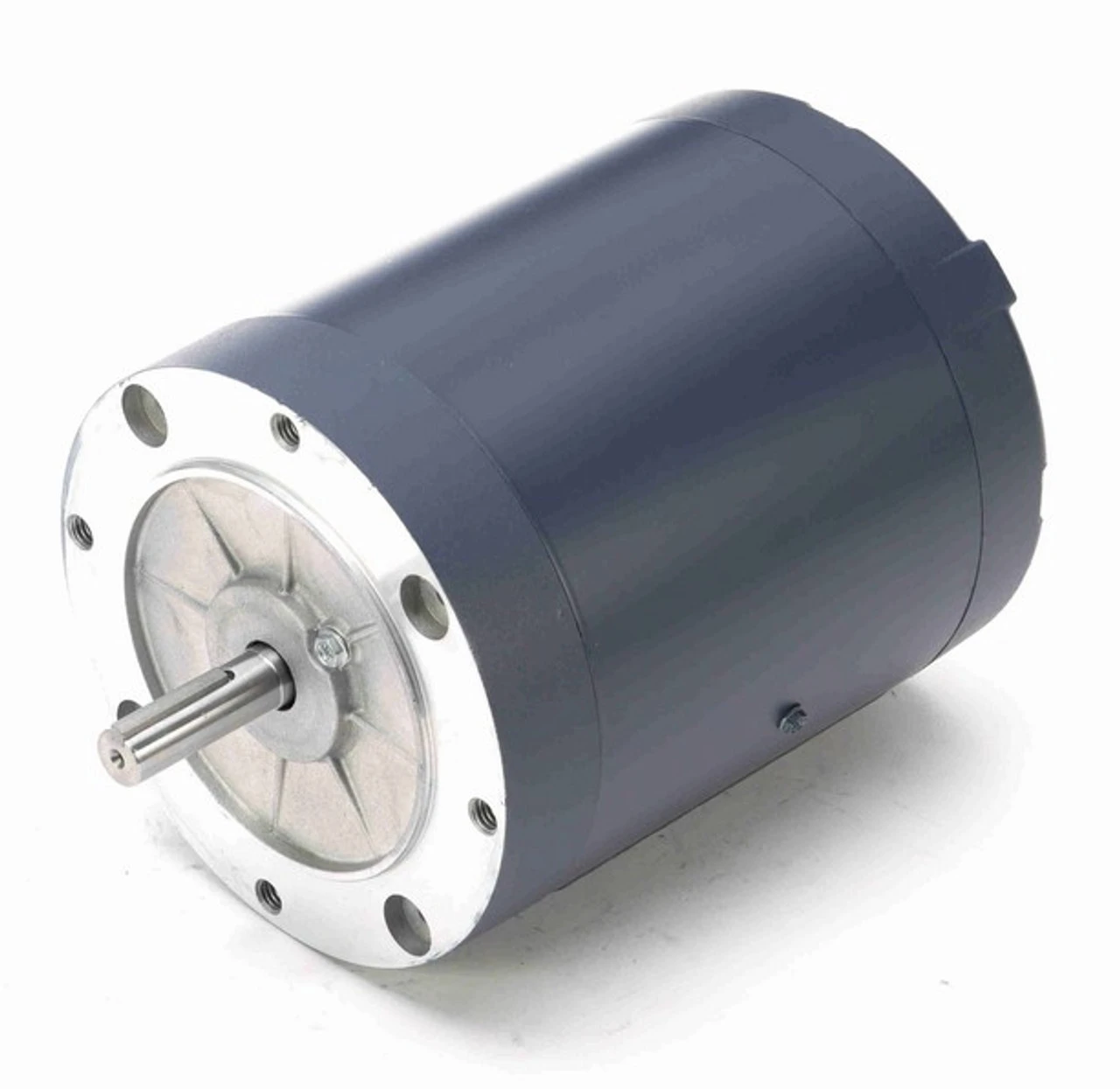

110144.00 Leeson 1/2 Hp 3600 RPM 208-230/460V 56C Frame TENV C-Face (No Base) 3-Phase Motor - Image 2

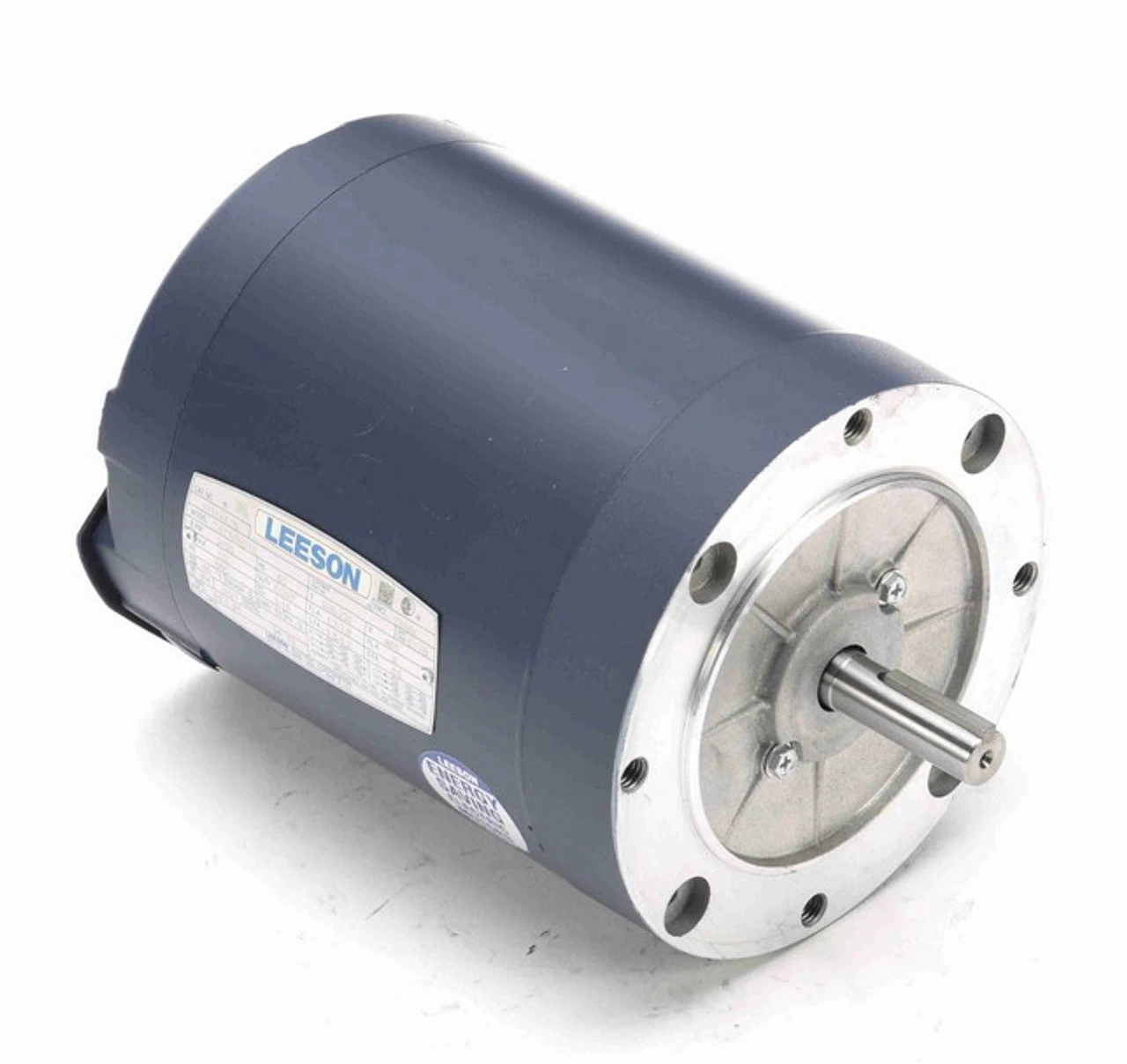

110144.00 Leeson 1/2 Hp 3600 RPM 208-230/460V 56C Frame TENV C-Face (No Base) 3-Phase Motor - Image 3

110144.00 Leeson 1/2 Hp 3600 RPM 208-230/460V 56C Frame TENV C-Face (No Base) 3-Phase Motor

Original price was: $389.50.Current price is: $98.99.

SKU: ZWXLY 1698654524 Categories: Electric Motors, Leeson/Marathon Electric Motors Tag: Leeson

Discover a world of quality products.
Secure Shopping Starts with Safe Payments
Uncompromising quality, every time.
Free 1 year warranty period

Description
Reviews (0)

1/2 hp 3600 RPM, 1.7-1.6/0.8 amps 208-230/460 Volts 60 Hz. Three Phase Motor
NEMA 56C Frame Keyed Shaft 5/8″ Diameter x 1 7/8″
Service Factor: 1.15, Overload Protection = None
No Base, Reversible, Ball Bearings – Class F Insulation
1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase Electric motor with a C-face mount. Motor has rigid base with C-Face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 3 3/4″ on center measured across the shaft. Wiring diagram on motor name plate. TENV = Totally Enclosed Non-Ventilated.110144.00
