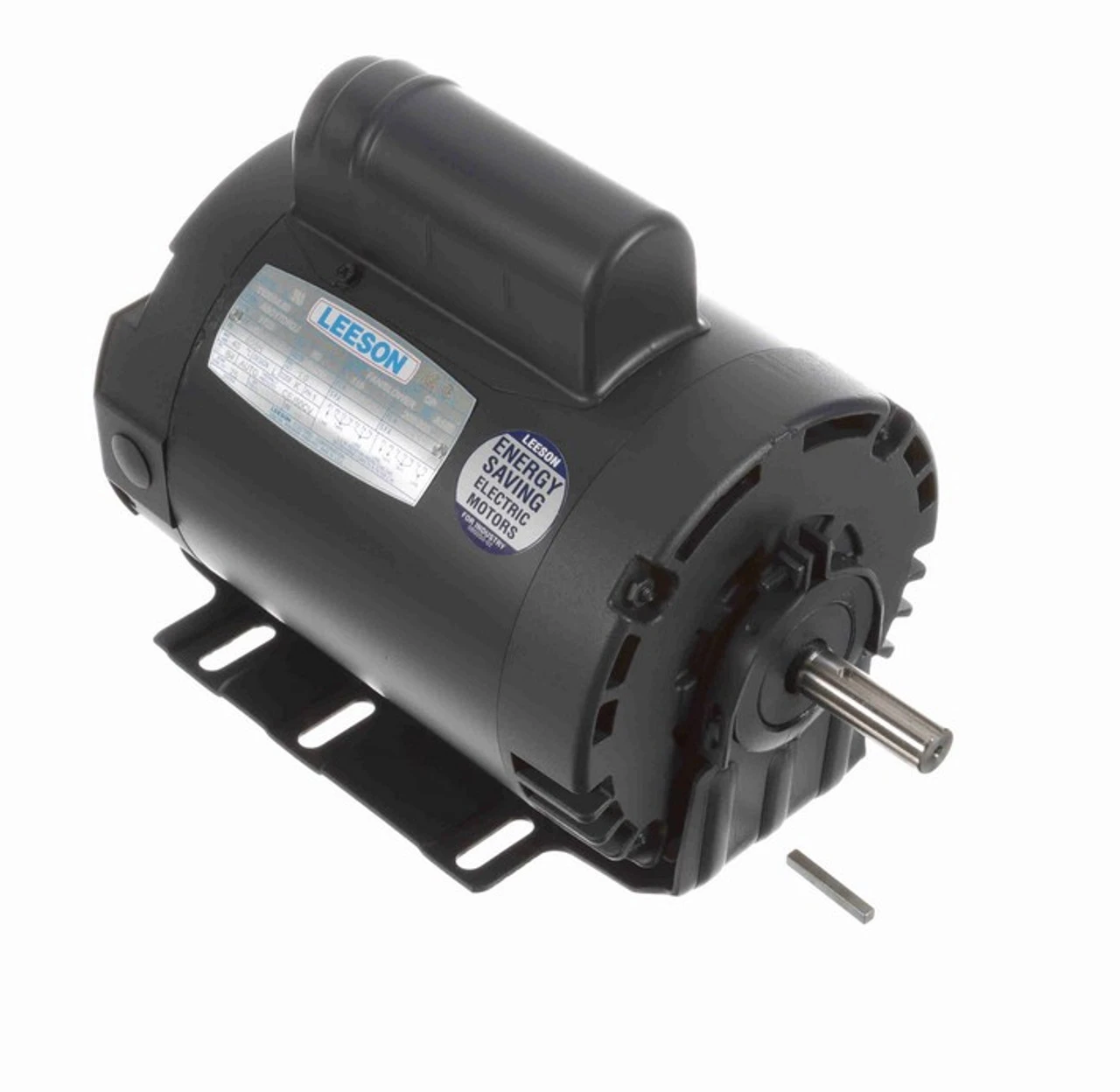

110054.00 Leeson 1 Hp 1800 RPM 115/208-230V 56H Frame (Resilient Base) ODP 1-Phase Fan Motor

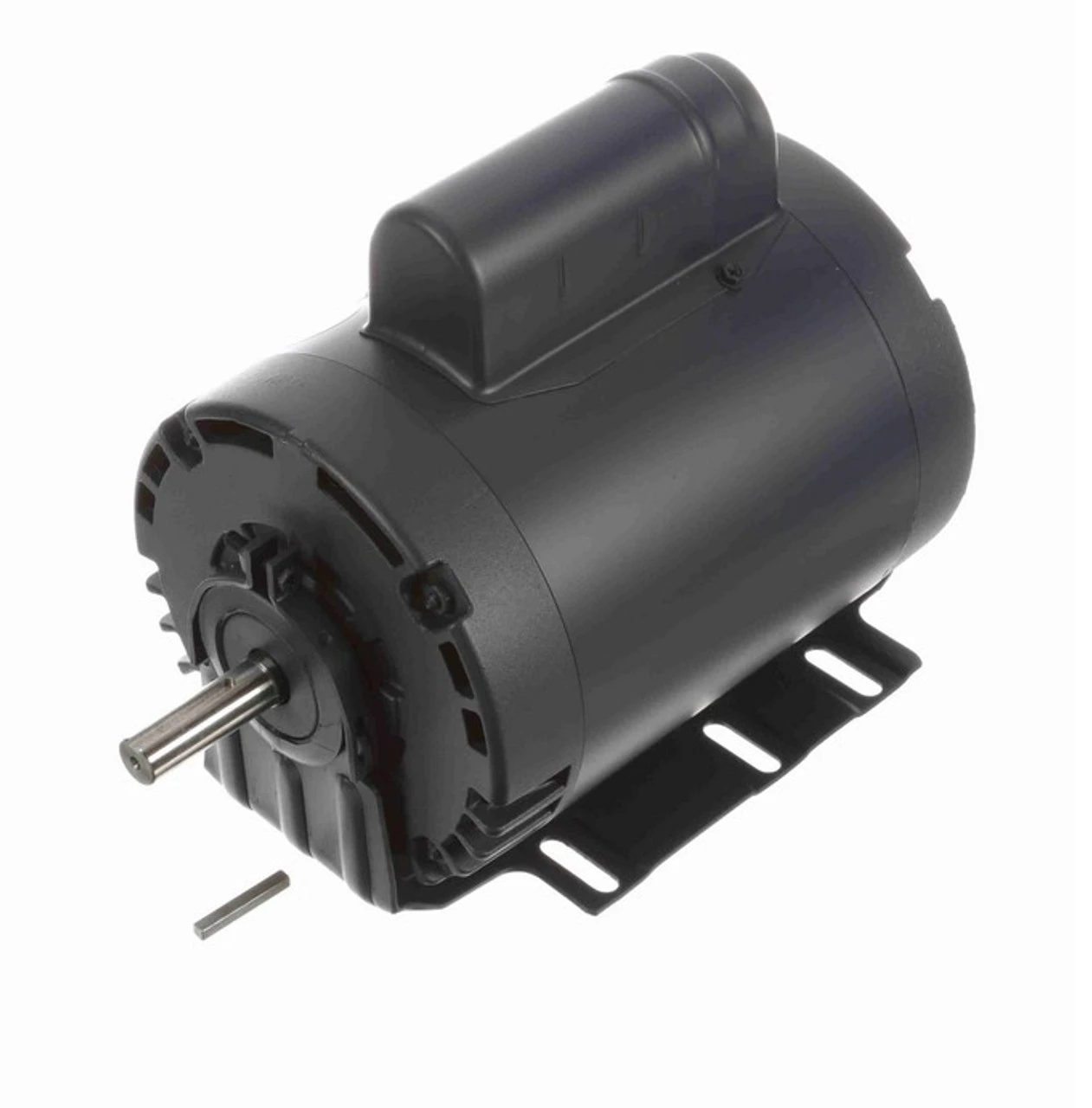

110054.00 Leeson 1 Hp 1800 RPM 115/208-230V 56H Frame (Resilient Base) ODP 1-Phase Fan Motor - Image 2

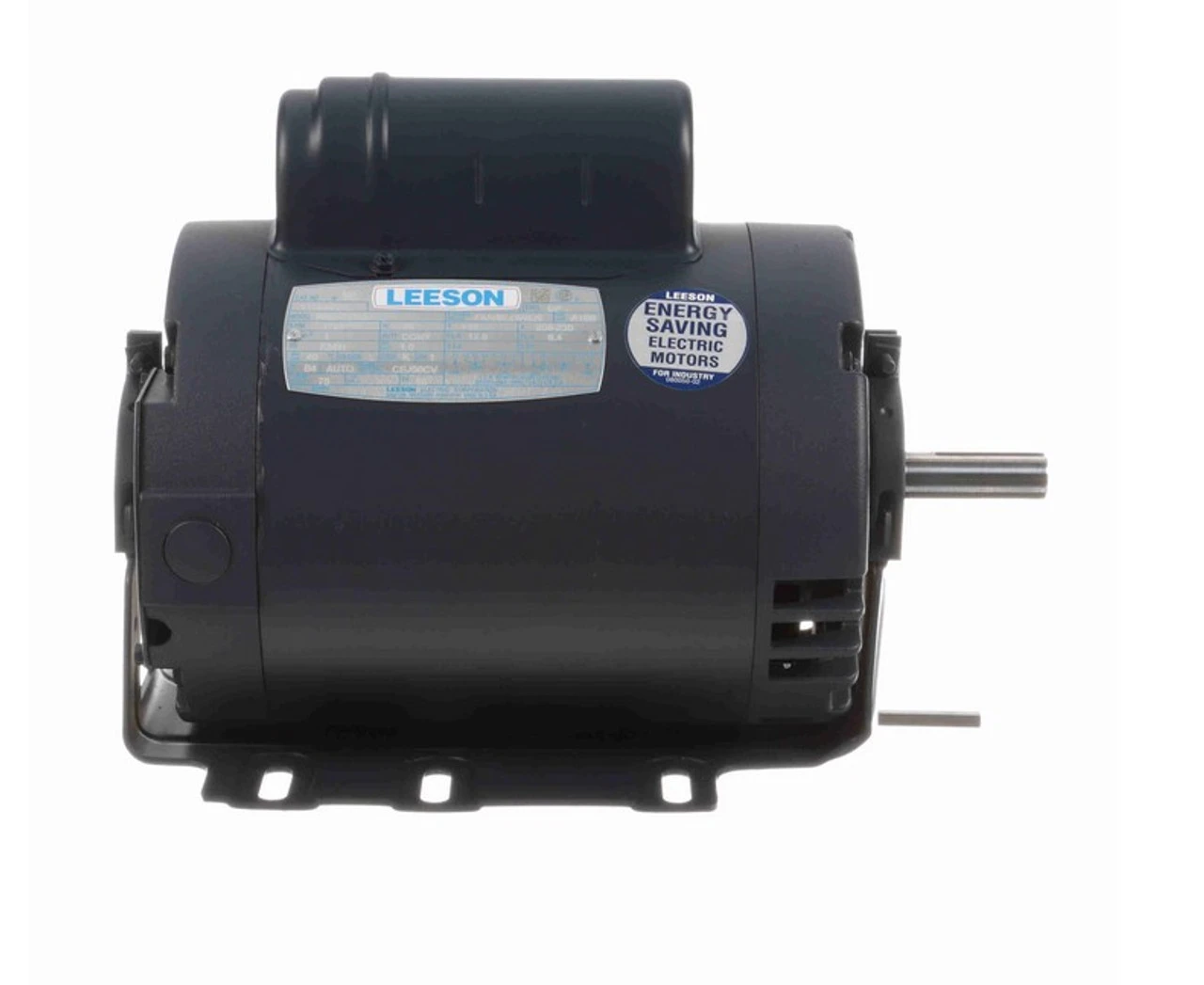

110054.00 Leeson 1 Hp 1800 RPM 115/208-230V 56H Frame (Resilient Base) ODP 1-Phase Fan Motor - Image 3

110054.00 Leeson 1 Hp 1800 RPM 115/208-230V 56H Frame (Resilient Base) ODP 1-Phase Fan Motor

Original price was: $303.00.Current price is: $98.99.

SKU: ZWXLY 1698655368 Categories: Electric Motors, Leeson/Marathon Electric Motors Tag: Leeson

Discover a world of quality products.
Secure Shopping Starts with Safe Payments
Uncompromising quality, every time.
Free 1 year warranty period

Description
Reviews (0)

1 hp 1800 RPM, 12.8/7.0-6.4 amps 115/208-230 Volts 60 Hz. Capacitor Start 1-Phase Motor
NEMA 56H Frame Keyed Shaft 5/8″ Diameter x 1 7/8″
Service Factor: 1.0 Overload Protection = Auto
Resilient Base, Reversible, Ball Bearings, Class B Insulation
1 Year Manufacture Warranty

General purpose motor having moderate starting torque generally used for fan and blower applications. Wiring diagram on motor name plate. ODP = Open Drip Proof. 110054.00
