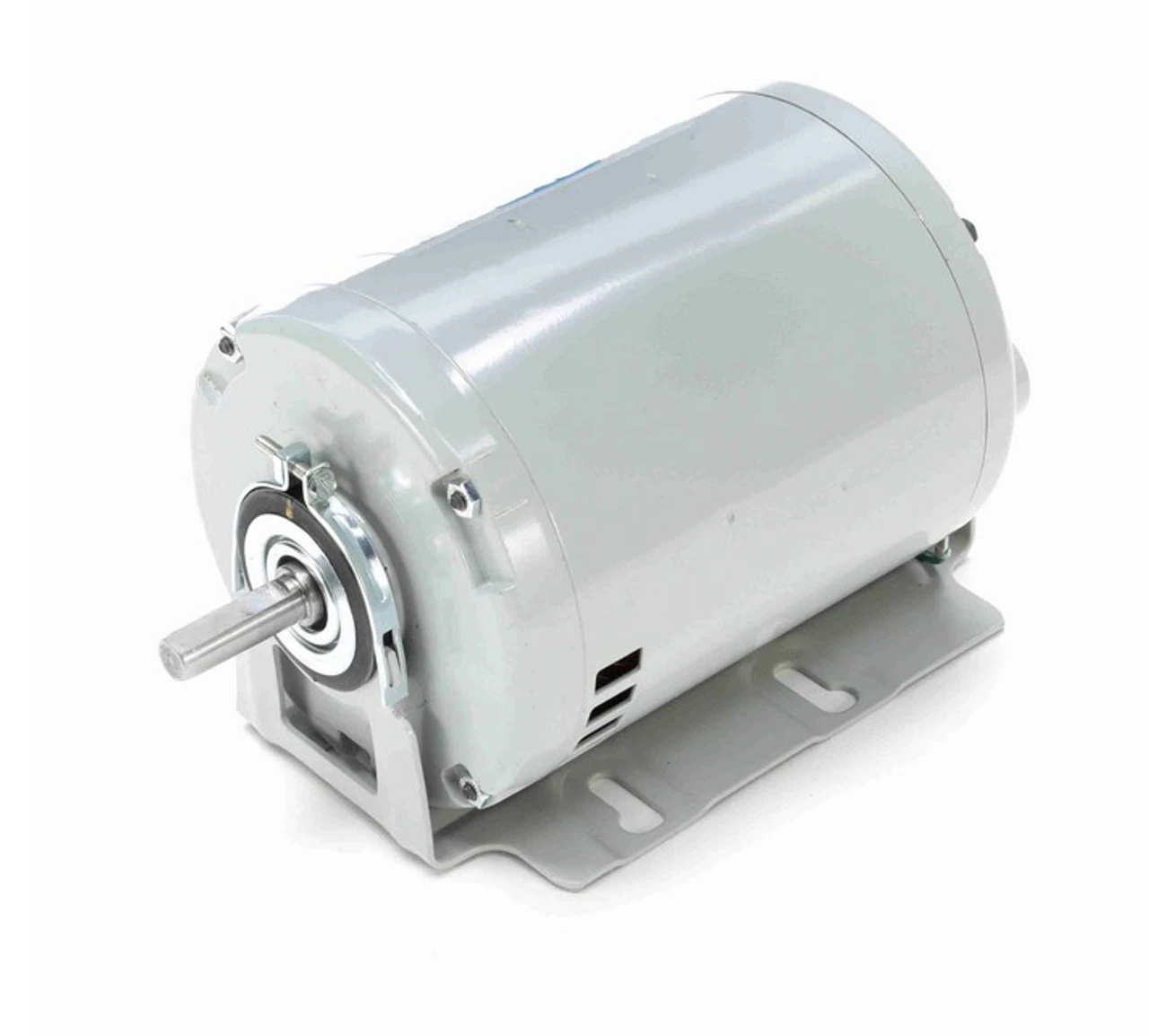

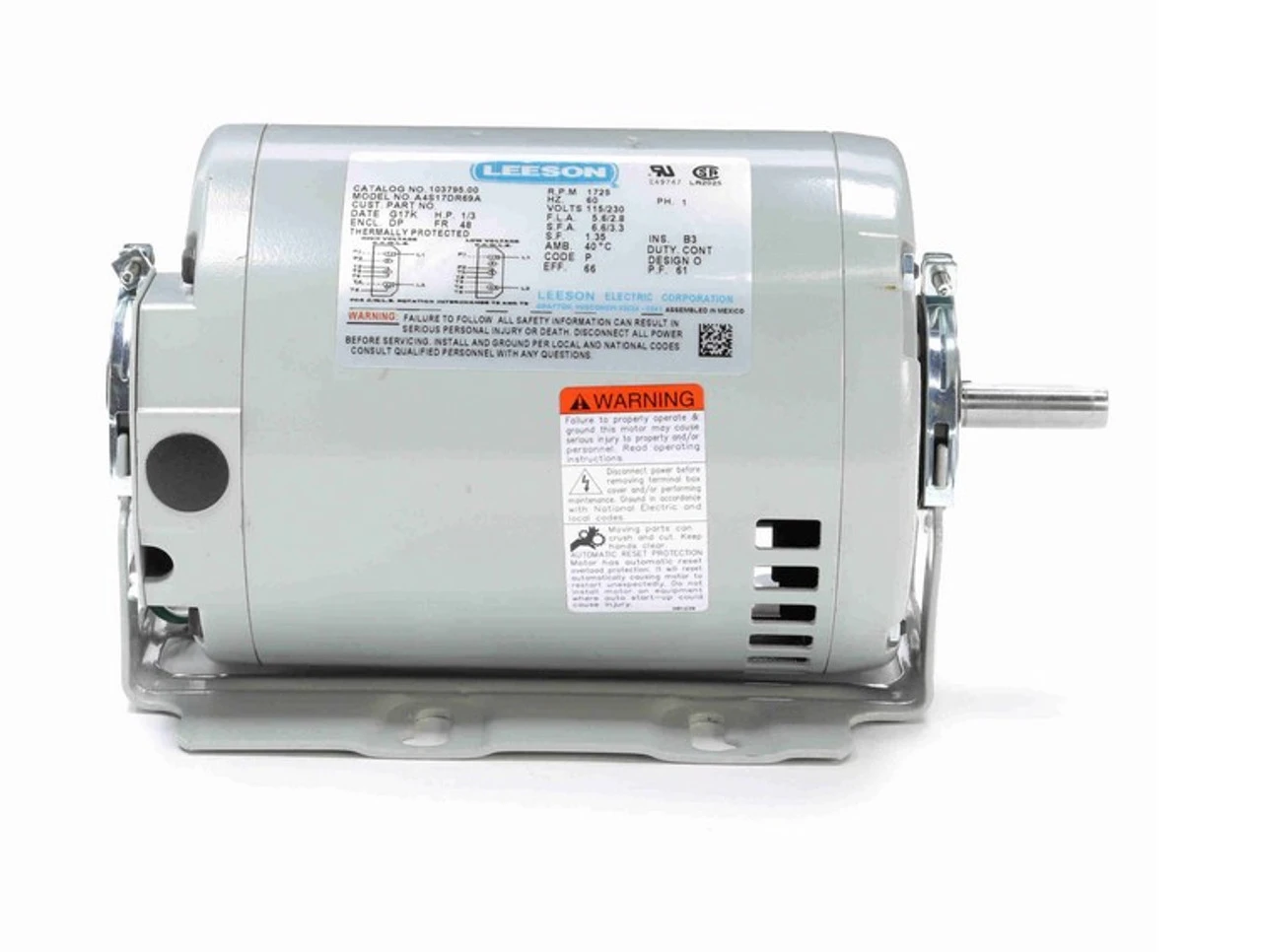

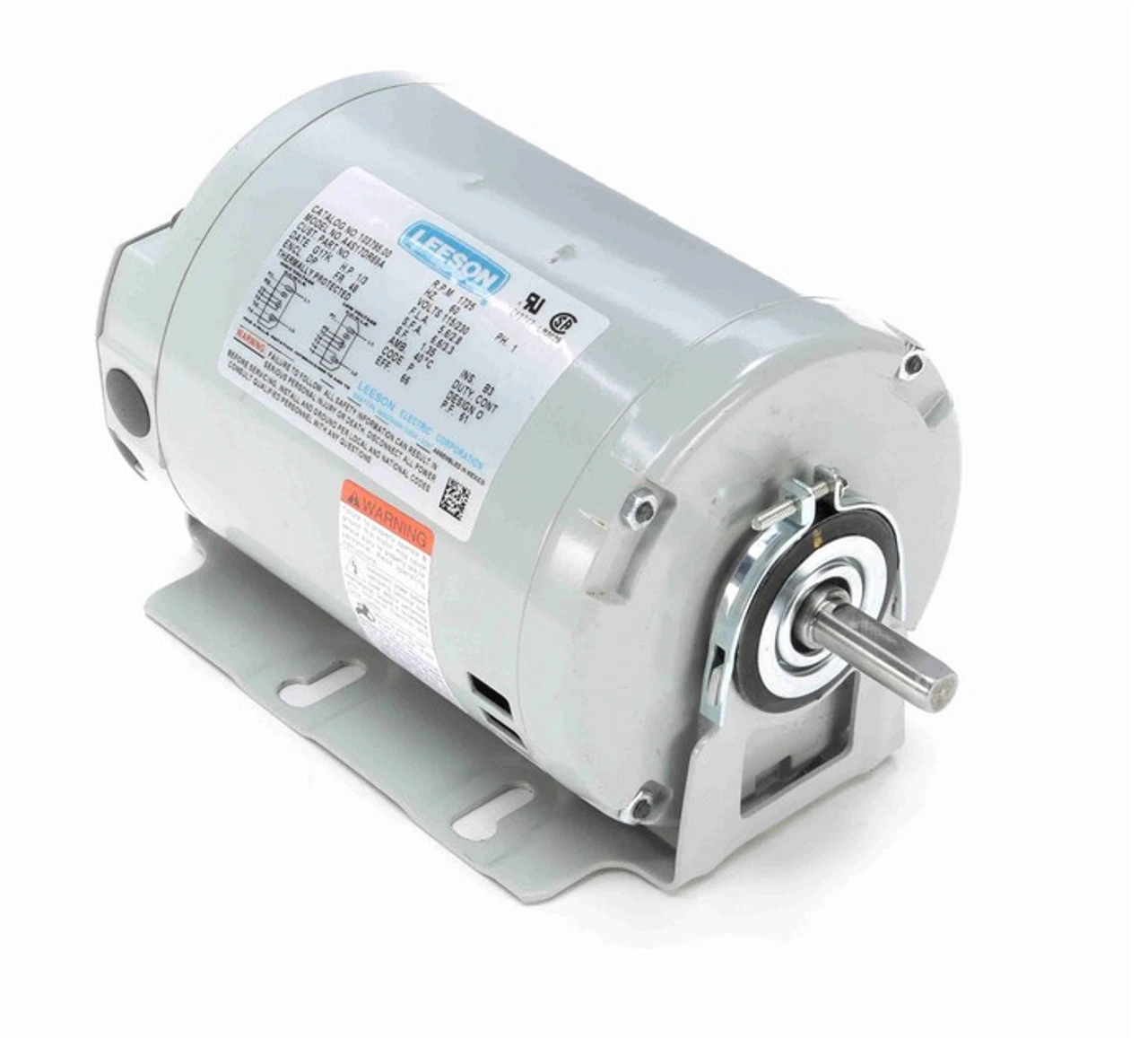

103795.00 Leeson 1/3 Hp 1800 RPM 115V 48 Frame (Resilient Base) ODP 1-Phase Fan Motor
Original price was: $218.40.$97.99Current price is: $97.99.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period
- 1/3 hp 1800 RPM, 5.6/2.8 amps 115/230 Volts 60 Hz. Split Phase 1-Phase Motor
- NEMA 48 Frame Flat Shaft 1/2″ Diameter x 1 1/2″
- Service Factor: 1.35 Overload Protection = Auto
- Resilient Base, Reversible, Ball Bearings, Class B Insulation
- 1 Year Manufacture Warranty
General purpose motor having medium starting torque generally used for fan and blower applications. Wiring diagram on motor name plate. ODP = Open Drip Proof. 101021.00
