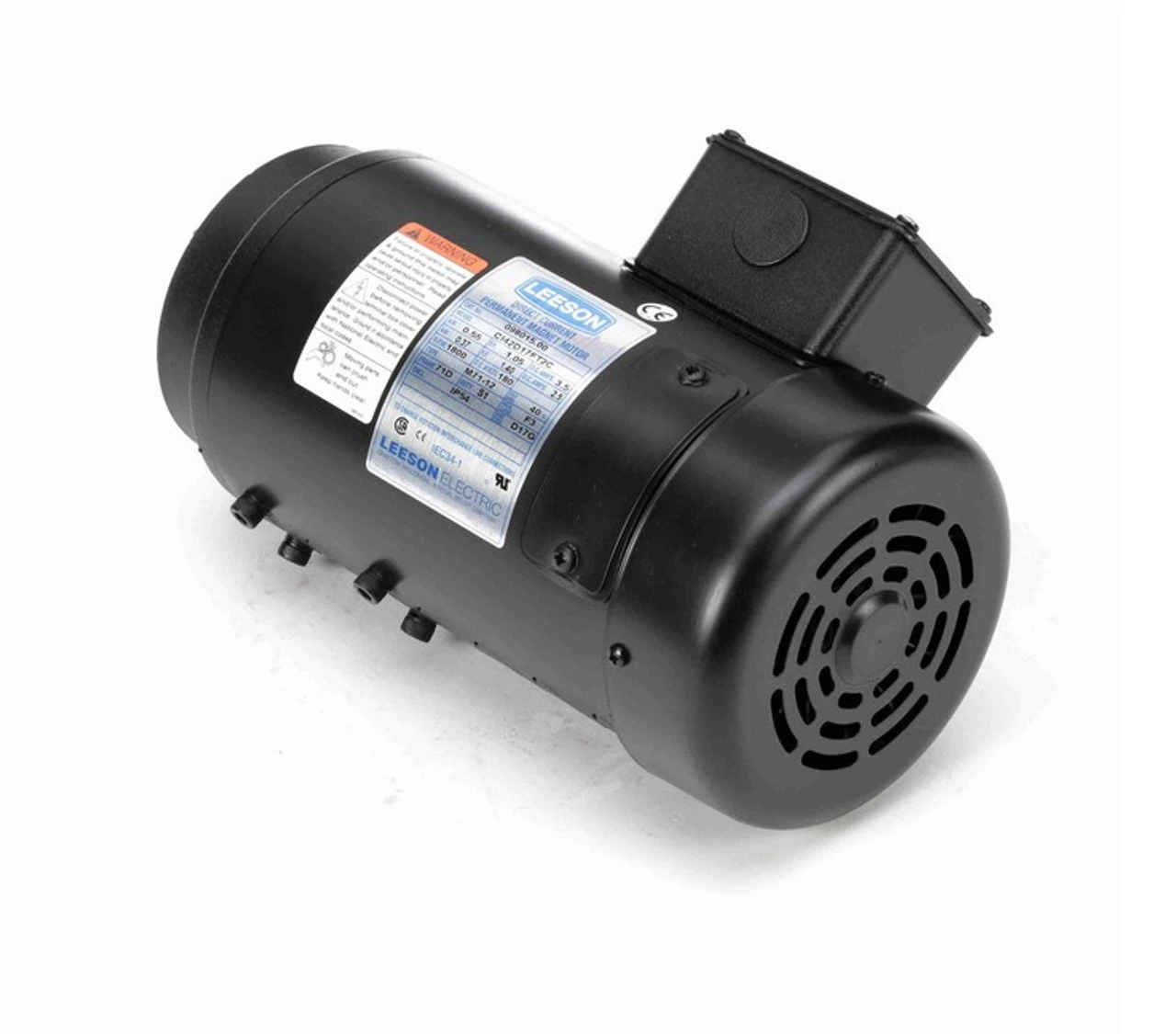

098015.00 Leeson 0.55 KW 1800 RPM 180VDC 71 Frame IP54 (No Base) TEFC Controllable DC Motor

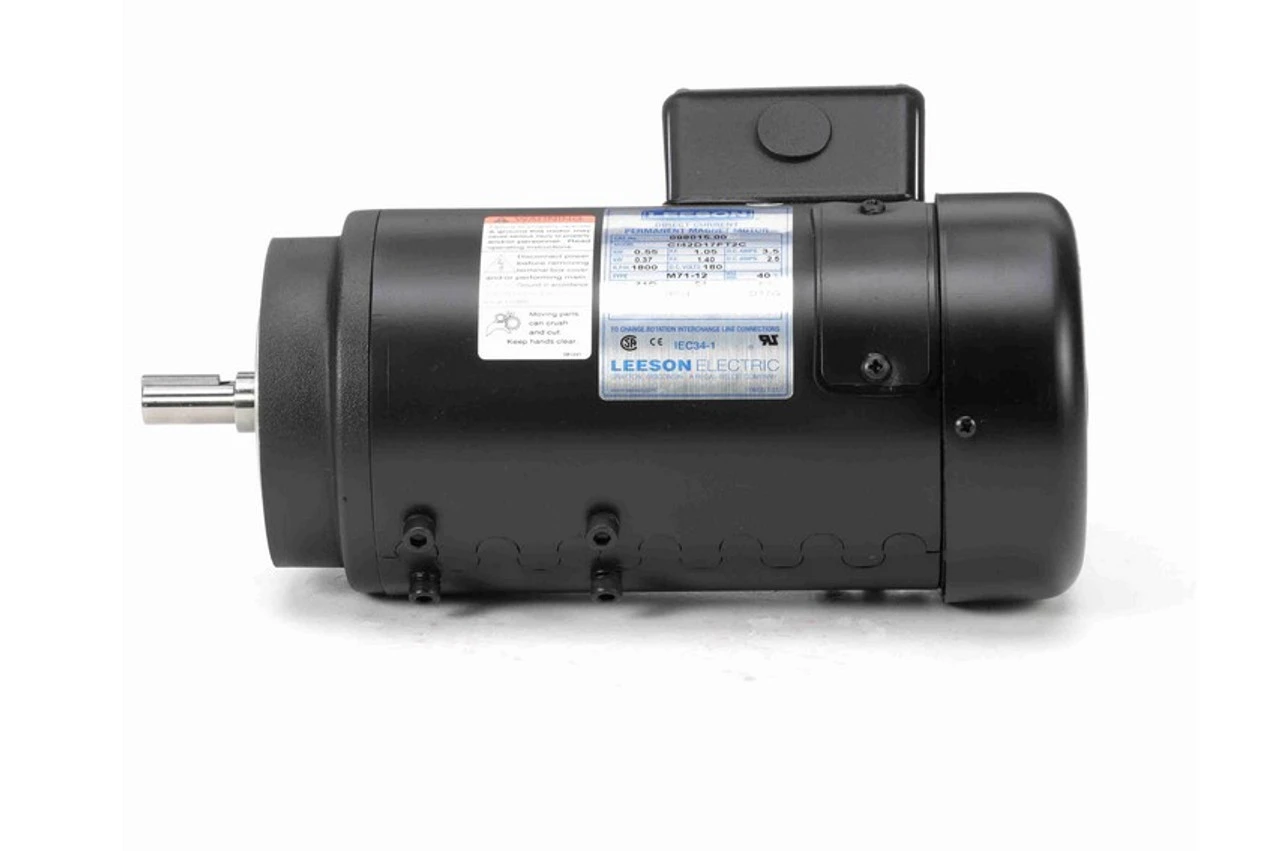

098015.00 Leeson 0.55 KW 1800 RPM 180VDC 71 Frame IP54 (No Base) TEFC Controllable DC Motor - Image 2

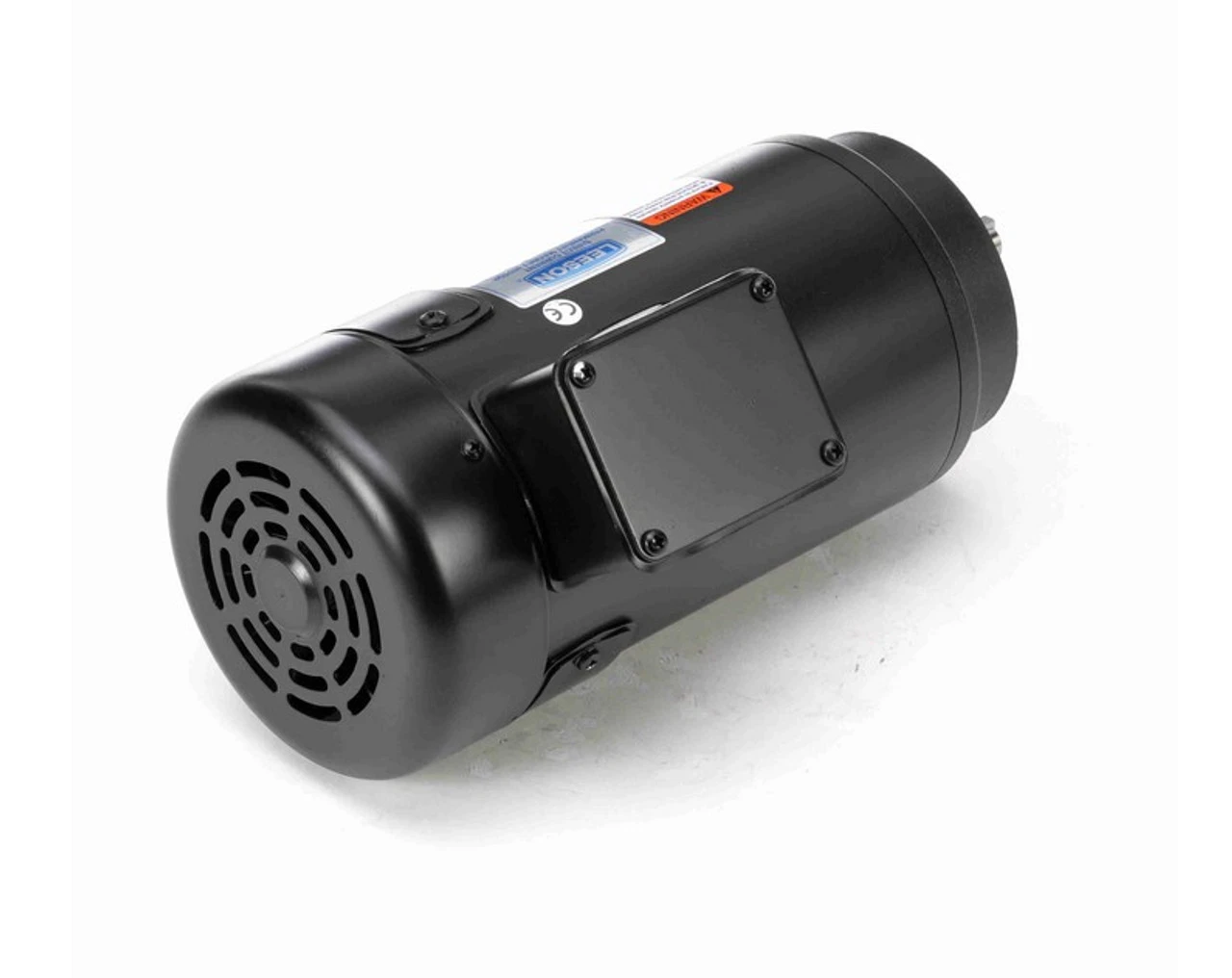

098015.00 Leeson 0.55 KW 1800 RPM 180VDC 71 Frame IP54 (No Base) TEFC Controllable DC Motor - Image 3

098015.00 Leeson 0.55 KW 1800 RPM 180VDC 71 Frame IP54 (No Base) TEFC Controllable DC Motor

Original price was: $321.00.Current price is: $98.99.

SKU: ZWXLY 1698665326 Categories: DC Motors, Electric Motors Tag: Leeson

Discover a world of quality products.
Secure Shopping Starts with Safe Payments
Uncompromising quality, every time.
Free 1 year warranty period

Description
Reviews (0)

0.55 kW 1800 RPM, 3.5 amps 180 Volt Controllable DC Motor
IEC 71 Frame, IP54 Enclosure, Shaft 9/16″ Diameter x 1 5/8″
Service Factor: 1.0 Overload Protection = None
No Base, Reversible, Ball Bearings, Class F Insulation
1 Year Manufacture Warranty

Metric DC motor designed for use with SCR (Silicon Controlled Rectifier) motor controllers. Wiring diagram on motor name plate. TEFC = Totally-Enclosed Fan-Cooled. 098015.00
